HOW to Work

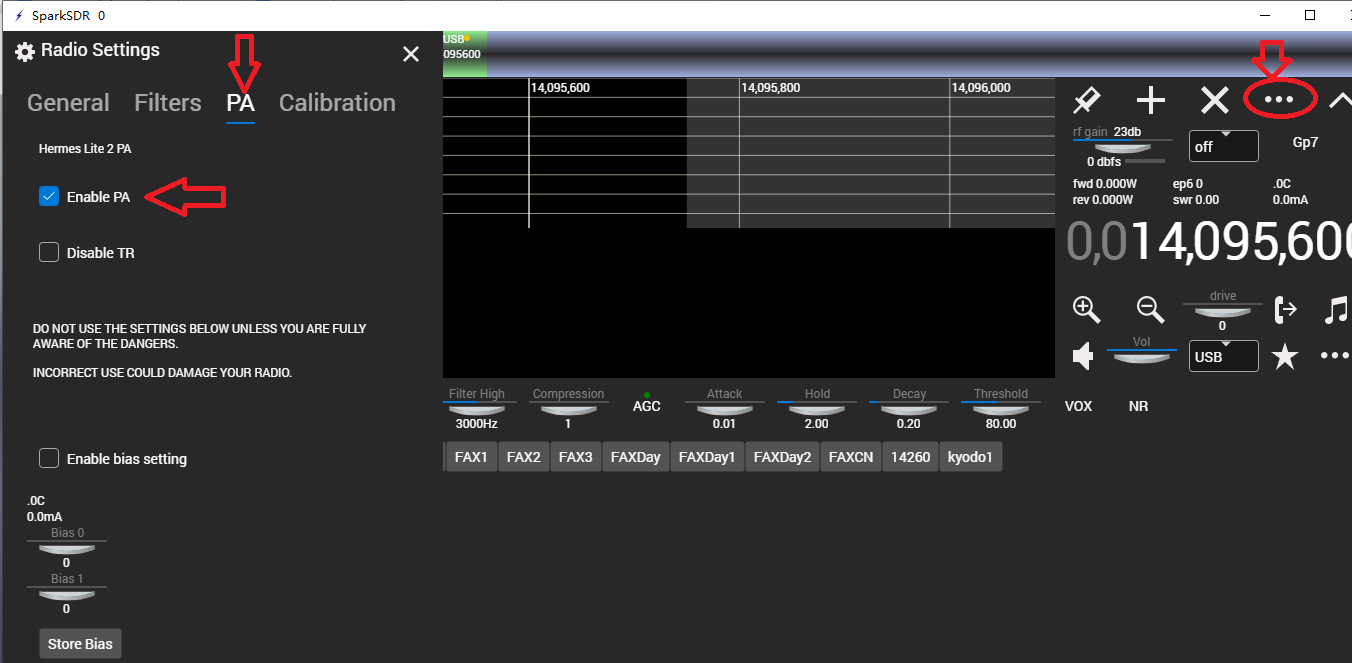

1. ENABLE PA on SparkSDR

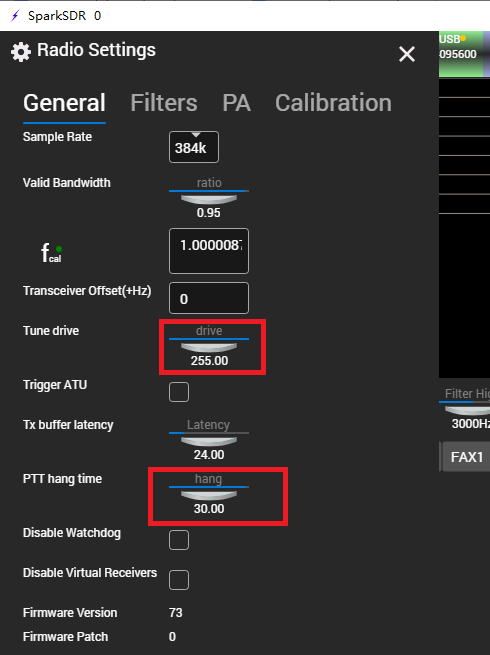

#2. Radio Setting

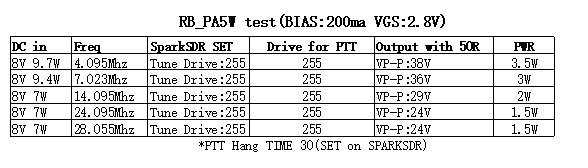

3. Test Data
5. FAQ

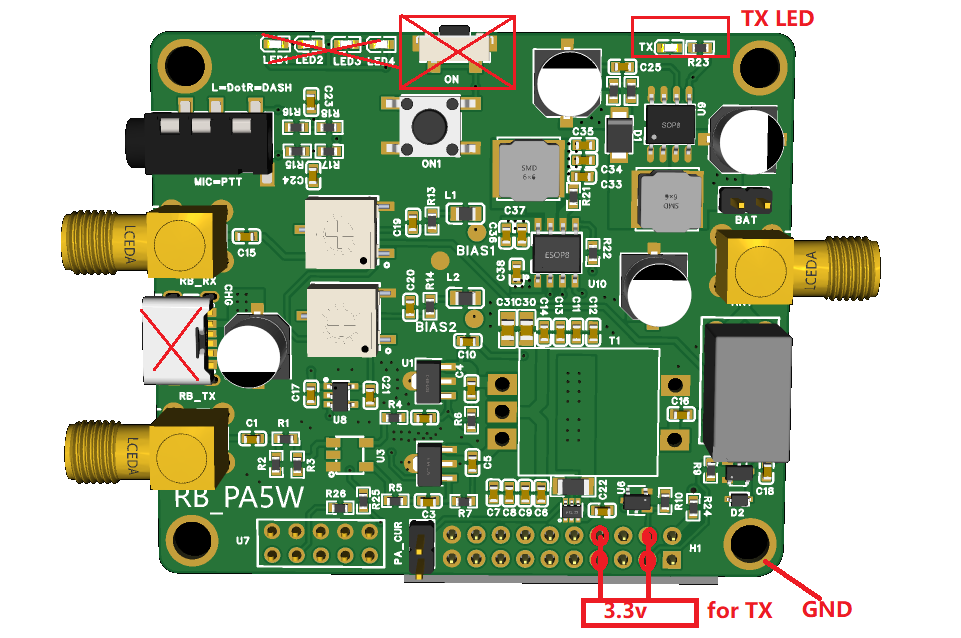

if the PA don’t work,pls check the 1. 2. and The D. TX LED is RED ?

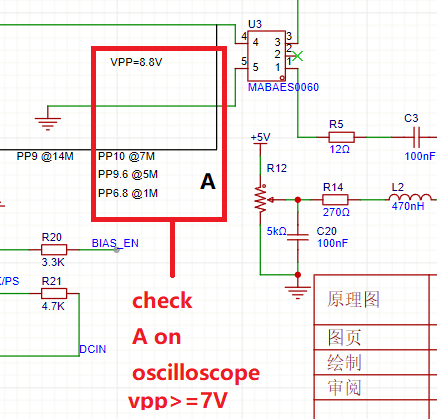

C.Check input Vpp >=7V

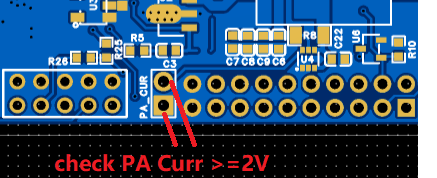

#Check Pa Curr >=2V ,it is the output of INA199A1DCKR with 40mR RES Current to Vol ,2V=1A
#if C. and D. the MOS is fail
